High-quality surgical training shouldn’t be limited by the availability of a dedicated microscope

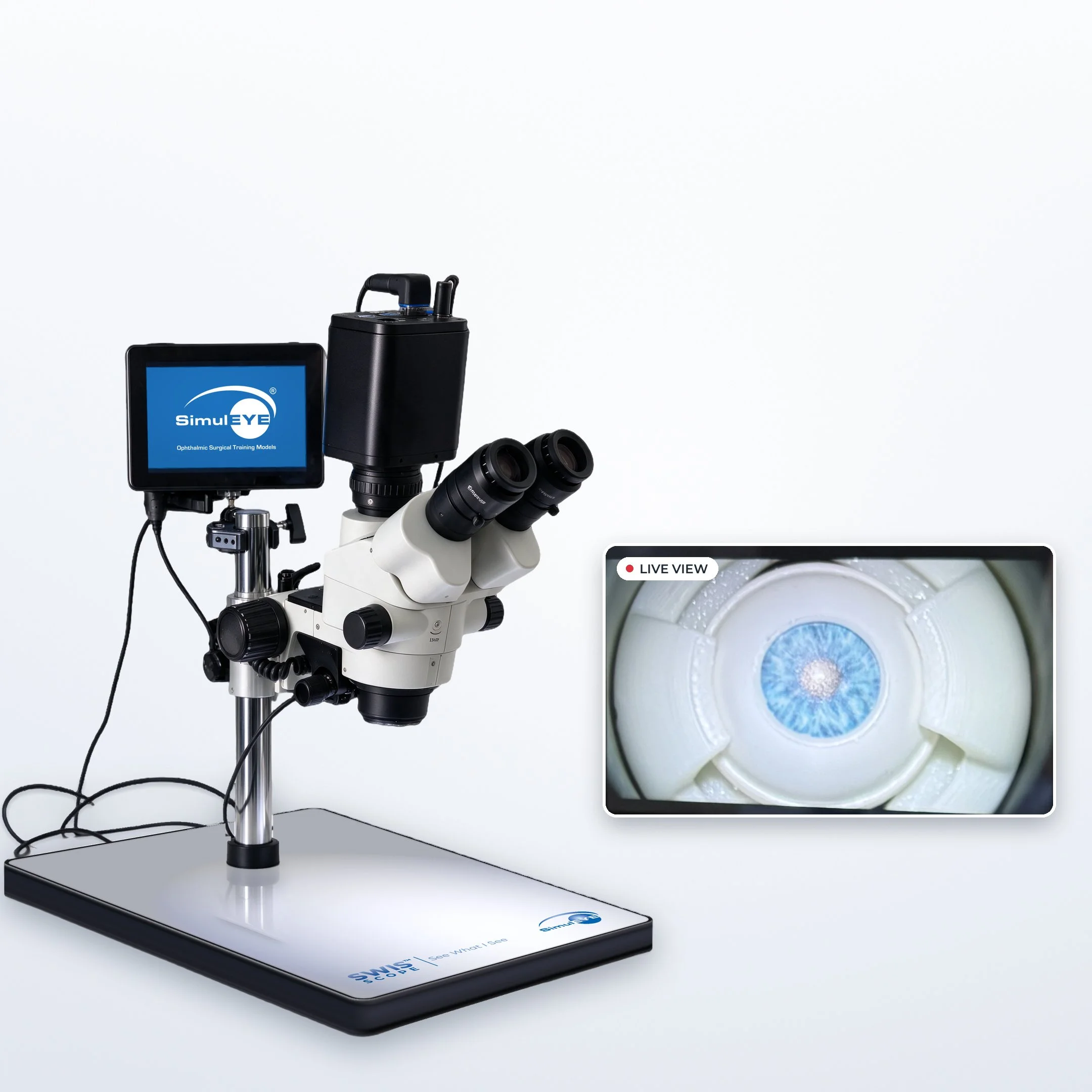

SimulEYE SWIS™ is a modern, lightweight surgical training microscope designed to bring high-quality visualization and hands-on ophthalmic training wherever it is needed. From cataract surgery to gonioscopy and MIGS, SWIS combines optical magnification, direct digital viewing, dedicated illumination, and adjustable positioning in a portable system designed for rapid setup and transport.

Open for Pre-Orders Soon!

Preliminary specifications. Anticipated production specifications. Final specifications may vary.

  • Microscope

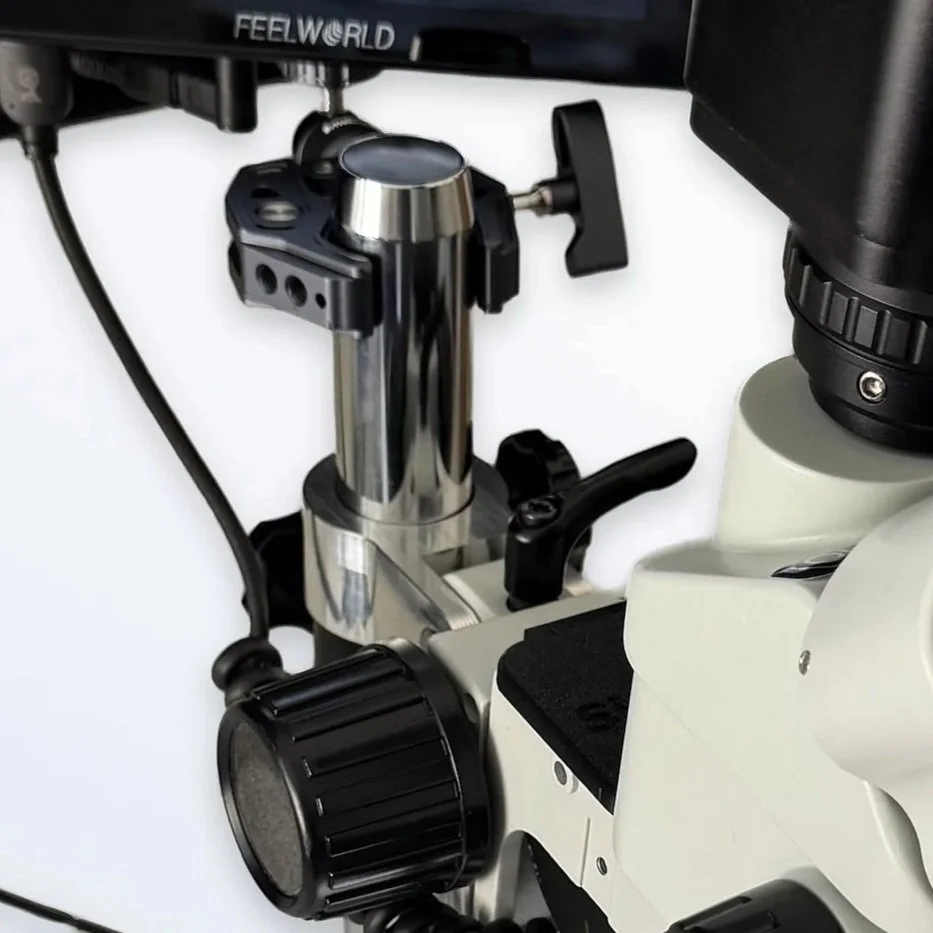

    Trinocular stereo microscope; 3.25×–22.5× optical magnification; 165 mm working distance; manual precision focus adjustment; adjustable microscope height.

    MIGS tilt

    Adjustable 0°–30° microscope tilt. Position at the desired angle and lock in place for gonioscopic and MIGS training.

    Digital camera

    Integrated 4K UHD camera; Sony 1/1.8-inch CMOS sensor; up to 3840 × 2160 resolution; direct HDMI video and USB 3.0 computer connectivity.

    Dedicated display

    7-inch high-brightness display; 1920 × 1200 native resolution; up to 2200 nit brightness; adjustable viewing position; HDMI input and output to a larger external display.

    Illumination

    High color rendering, rechargeable LED illumination.

    Power

    Compact power block and U.S. AC plug supplied. An appropriate plug adapter is required for use outside the U.S.

    Portability

    Stable tabletop base; no specialized microscope table required. Designed for rapid setup, breakdown, and transport.

    Carrying case

    Protective carrying case. Exterior dimensions (L × W × D): 21.84 × 13.82 × 9 in. Sized for carry-on travel under typical U.S. airline limits; check your airline’s size and weight requirements before travel.

    Approximate weight

    16 lb assembled; 32 lb including carrying case for transport.

    Ergonomics

    A height-adjustable chair is recommended for optimal positioning.

    Production

    Designed and Assembled in the USA.

    Warranty and service

    Final written warranty terms will accompany the sales quotation. SimulEYE will coordinate service and repair requests. Applicable statutory rights are unaffected.

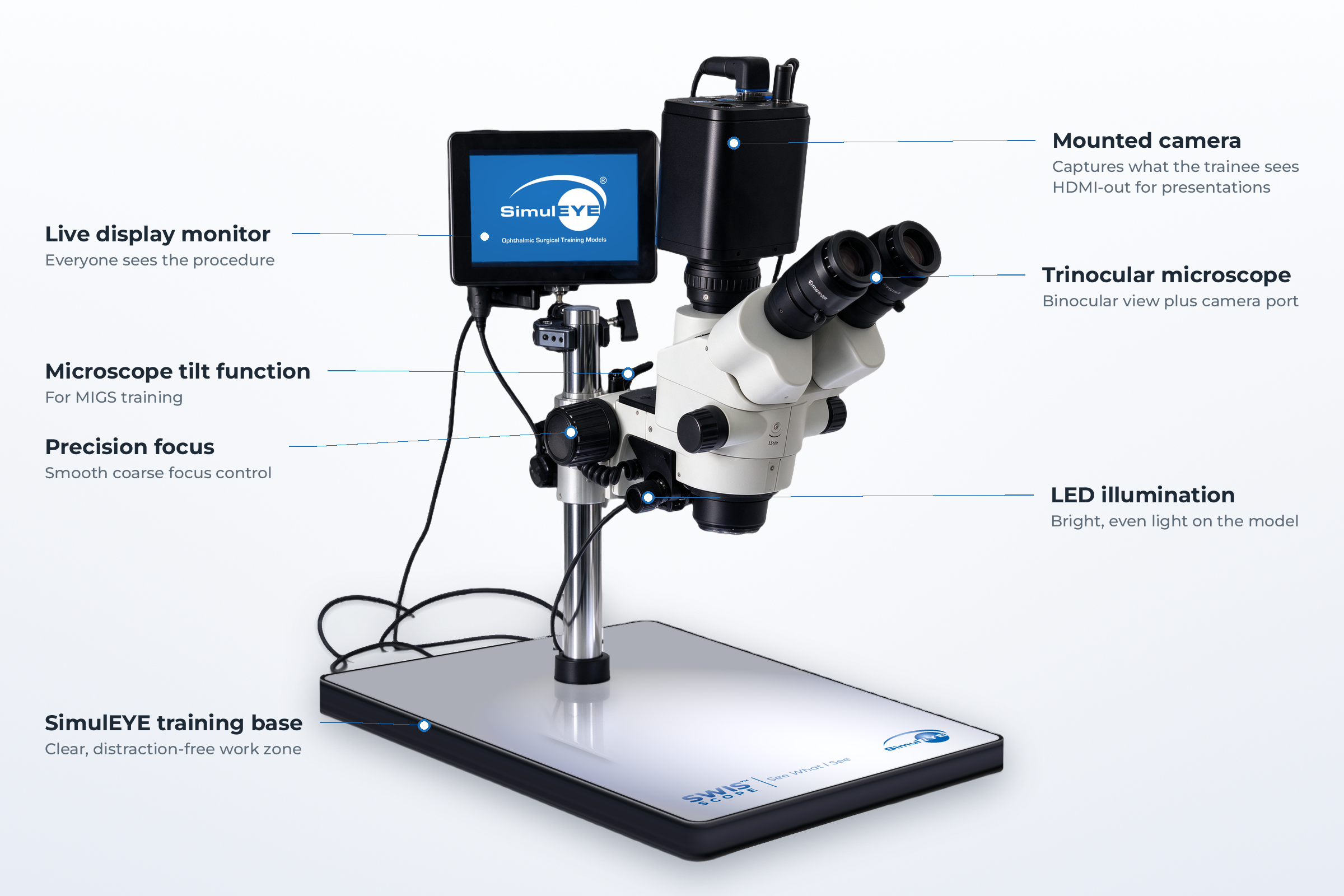

What’s inside?

See What I See.

Bringing you the best portable monitor for Ophthalmic Surgical Training.

Train Anywhere

SWIS was designed with mobility in mind. Its stable tabletop base eliminates the need for a specialized microscope table, while its compact design allows for rapid setup, breakdown, and transport.

See the Surgery

SWIS integrates a 4K UHD digital camera with a dedicated high-brightness display, giving instructors and participants a clear view of the surgical field.

Built for Ophthalmic Training

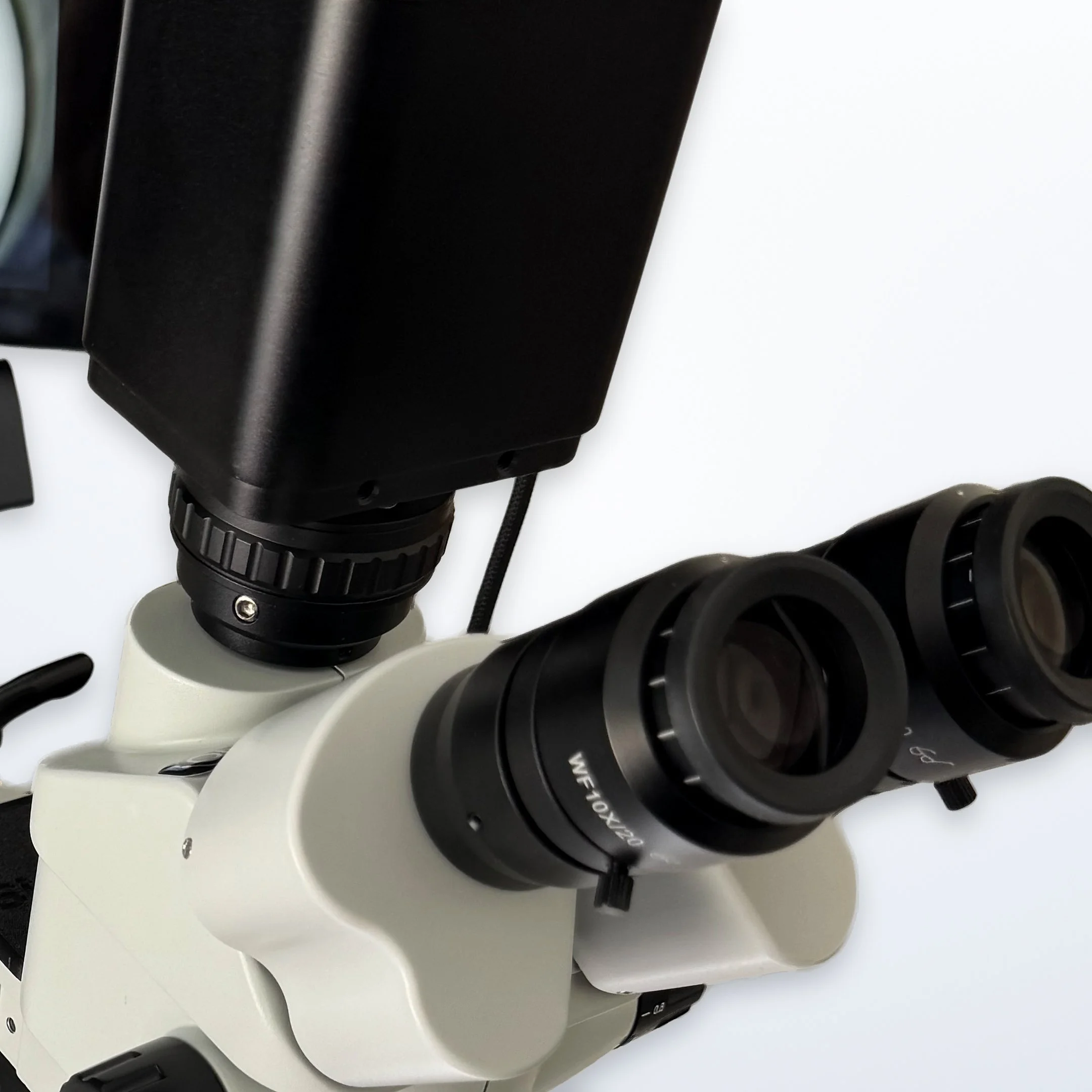

SWIS combines a 3.25×–22.5× trinocular stereo microscope with a 165 mm working distance and manual precision focus adjustment. Its adjustable microscope height and dedicated illumination provide the flexibility needed for hands-on surgical simulation.

Compatible for MIGS training

For gonioscopic and MIGS training, SWIS features a 0°–30° adjustable microscope tilt that can be positioned and locked at the desired angle.

Designed around the procedures you train.

Let's talk about SWIS™ Scope

Whether it's for surgical training, sales demos or your next conference booth, our team will help you find the right setup.
